The right foundation keeps your metal building plumb, level, and anchored for decades. Get it wrong and you’re dealing with cracked slabs, shifting columns, and repairs that cost more than the foundation did to begin with.
This guide covers every foundation type used under metal and steel buildings, what each one costs, how to pick the right one for your site, and what the building codes expect from you before you pour.
Quick Answer
A metal building needs a foundation that transfers the structural load into stable soil and anchors the steel frame against wind uplift. For most projects, that means a concrete slab-on-grade with a thickened perimeter footing.
What drives the choice:
- Building use: a storage shed can sit on a gravel pad; a commercial shop needs a concrete slab; a habitable barndominium needs a full frost-protected foundation
- Soil conditions: soft clay, fill dirt, and high-water-table sites often need piers or a deeper perimeter wall
- Climate: in freeze zones, footings must extend below the frost line (12–48 inches depending on your region)
- Building size and load: larger buildings and heavy equipment floors require thicker slabs and more reinforcement
- Local code: your county sets minimum thickness, concrete strength, and frost depth requirements
What a Metal Building Foundation Does
A steel building frame transfers all its loads, vertical from the roof and walls and lateral from wind and seismic, through anchor bolts into the foundation. The foundation then distributes that load into the soil below.
It has to do two things at once. First, carry the building’s dead load (the weight of the structure) plus any live loads: snow, equipment, vehicles. Second, resist uplift. When wind pushes against a metal wall panel, the frame tries to lift off the ground on the leeward side. Properly embedded anchor bolts, set into adequate concrete, are what keep that from happening.
This is why “can I skip the foundation?” almost always gets a no from an engineer. A gravel pad works for a few specific use cases, but anything with an engineered steel frame needs anchor bolts set in concrete.
The Main Foundation Types for Metal Buildings

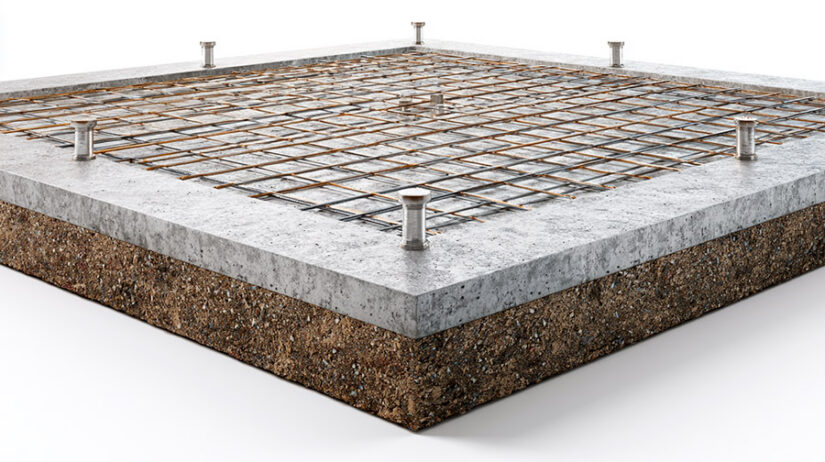

Slab-on-Grade (Monolithic)
The most common foundation for metal buildings across the US. A monolithic slab is poured in one continuous pour: thickened edges under the column lines form the footings, and the interior slab fills in between. The result is a single concrete piece with no separate footing system.
For most agricultural buildings, shops, garages, and light commercial structures on stable soil, this is the right call. The slab provides both the foundation and the finished floor in one step.
Typical specs: 4-inch interior slab with 12–18 inch thickened edges at perimeter and column locations. In cold climates, the thickened edge must extend below the local frost line. Concrete strength: 3,000–4,000 psi minimum, with rebar or wire mesh reinforcement.
When to use it: stable soil (not expansive clay or fill), flat or gently sloping site, buildings that need a finished floor surface, any commercial or habitable structure.
Perimeter Wall with Interior Slab
A perimeter wall foundation, sometimes called a stem wall or frost wall, separates the footing from the floor slab. The engineer designs a continuous concrete wall around the perimeter, footed below the frost line, with the interior filled and a slab poured on top.
This system is standard for larger commercial buildings, habitable structures in cold climates, and sites where frost heave is a real risk. In northern states where frost depths run 36–48 inches, a monolithic slab edge would need to be impractically deep. The stem wall handles the frost depth requirement while the interior slab handles the floor.
It costs more than a monolithic slab because you’re building a wall plus a slab instead of one pour. In freeze climates, it’s usually what the code requires and what your engineer will stamp.
Typical cost: $7–$14 per square foot for the full system, plus the interior slab.
Pier and Post
A pier foundation places individual concrete columns at each structural column location, going deep enough to hit stable soil or get below the frost line. The steel building columns land on top of these piers, with anchor bolts embedded at the top.
This type makes sense when you don’t need an interior concrete floor (open-sided equipment shelters, pole barn-style storage) or when the terrain makes a full slab impractical. It’s also the choice on steep slopes where grading for a full slab would be expensive.
The tradeoff: no finished floor, and you need to think about what goes between the piers. Gravel, dirt, or a separate slab can be added later, but that’s not part of the pier system.
Individual pier installation runs $1,000–$3,000 per pier depending on depth and diameter (Source: HomeGuide, 2026). A small building needing 6–8 piers totals $6,000–$24,000 for the pier system before any floor work.
When to use it: equipment shelters, open-sided storage, buildings on slopes, sites where full excavation would be expensive.
Floating Slab
A floating slab is poured with no connection to the ground below other than its own weight. There are no embedded anchor bolts from a separate footing; the slab itself acts as the foundation. It’s used in very mild climates where there’s no frost risk and the building loads are light enough that uplift isn’t a design concern.
For most engineered steel buildings in the US, a floating slab is not appropriate. The steel manufacturer’s anchor bolt plan requires bolts cast into concrete with adequate embedment depth, which a floating slab usually can’t provide at the thicknesses involved. If someone quotes you a floating slab for a pre-engineered metal building, ask to see the engineer’s stamp on that design.
Where floating slabs do work: heated slabs in greenhouses, small unheated agricultural buildings in frost-free zones, detached accessory structures where code permits. Check with your local building department first.
Crushed Stone or Gravel Pad
A compacted gravel pad is not a foundation in the structural sense. It’s a site-prep solution for open-sided carports, temporary equipment shelters, and some agricultural structures where no engineered frame is involved and local code doesn’t require a permitted foundation.
A properly built gravel pad uses 4–8 inches of compacted 3/4-inch crushed stone over a geotextile fabric layer on firm subgrade. It drains well, stays reasonably level, and gives you a usable surface without a concrete cost.
Gravel pad installation runs $1–$3 per square foot on a straightforward site (Source: Angi, 2026). On a 30×40 footprint, that’s roughly $1,200–$3,600 all-in.
What it won’t do: anchor your building. Any pre-engineered metal building with a bolt-together steel frame needs anchor bolts in concrete. Gravel pads are for structures that either aren’t bolted to the ground at all or use ground anchors such as helical piers or mobile home-style tie-downs, not for a standard metal building kit.
When no Traditional Foundation is Used
Mobile home-style ground anchors, helical piers, and earth screws exist for temporary or semi-permanent structures. Some manufacturers offer skid systems. These are outside the scope of a permanent engineered building and almost always require specific approval from both the local building department and the steel manufacturer, since they affect the structural warranty.
Foundation Type Comparison
| Foundation type | Typical cost range | Best for | Key advantage | Main limitation |
| Slab-on-grade (monolithic) | $6–$12/sq ft installed | Shops, garages, light commercial, ag | Single pour, lowest total cost on flat sites | Frost depth limits in cold climates |
| Perimeter wall + interior slab | $7–$14/sq ft (full system) | Cold climates, commercial, habitable | Handles frost depth, structural | Higher cost, more labor |
| Pier and post | $1,000–$3,000/pier | Open shelters, slopes, no-floor buildings | Works on difficult terrain | No finished floor included |
| Floating slab | Variable | Mild climates, light ag | Simple pour | Usually not appropriate for engineered frames |
| Crushed stone/gravel pad | $1–$3/sq ft | Open carports, temporary structures | Lowest upfront cost | Cannot anchor a bolted metal building frame |
What a Metal Building Foundation Costs
Foundation cost is where most buyers underestimate the total project. The steel kit quote does not include the foundation. It never does.
For a standard slab-on-grade, expect $6–$12 per square foot installed depending on slab thickness, reinforcement spec, and your region (Source: HomeGuide, 2026; Angi, 2026). On a 30×40 footprint (1,200 sq ft), that’s $7,200–$14,400. On a 40×60 (2,400 sq ft), it’s $14,400–$28,800.
That range covers a standard 4-inch reinforced slab. Additions that push the number up:
- Thicker slab (5–6 inch) for heavy equipment: adds $1.50–$3.00/sq ft
- Rebar reinforcement vs wire mesh: rebar adds $1.40–$4.00/sq ft over wire mesh (Source: HomeGuide, 2026)
- Vapor barrier: $0.50–$1.00/sq ft
- Stem wall or frost wall: adds $45–$55 per linear foot for the wall itself
- Site grading and excavation: $2,500–$15,000+ depending on how much work the site needs
- Engineered foundation drawings: $500–$2,500 depending on engineer and complexity
- For cost comparisons across the total project, see how much do metal buildings cost.
Regional variation is real. Competitive rural markets in the South pour slabs for $5.50–$7 per square foot. High-cost markets in California, New York, and the Pacific Northwest push toward $12–$18 per square foot for standard work (Source: CostflowAI, 2026).
How to Choose the Right Foundation
The right foundation depends on four things: what you’re building, where you’re building it, how big the building is, and what you’re willing to spend.
Use case first. A workshop or commercial building needs a concrete floor anyway, so a slab-on-grade does two jobs at once. An open equipment shelter on a farm may only need a gravel pad or simple piers. A habitable barndominium needs a frost-protected foundation in most states, which typically means a perimeter wall system.
Soil and site conditions. Ask a geotechnical engineer or your concrete contractor about the soil before you commit to a design. Expansive clay swells and shrinks with moisture, which cracks standard slabs. Fill dirt compresses unpredictably. High water tables require drainage solutions before you pour. Problem soils usually mean piers or a deeper perimeter system, not a simple slab.
Building size and load. A 20×30 storage building with light foot traffic needs a different slab than a 60×100 fabrication shop with a 10,000-pound press. Your steel manufacturer will provide an anchor bolt plan and specify the minimum concrete strength (psi) and embedment depth. The foundation engineer works from those specs.
Budget and timeline. The cheapest foundation option that meets code and engineering requirements is almost always the right call at the planning stage. If you’re looking hard at the budget side, see the cheapest foundation for a steel building for a direct cost comparison of options.
Slab Specifics: Thickness, Reinforcement, and What You Actually Need
Slab thickness for a metal building is not one-size-fits-all. The use case drives the spec:
- 4 inches: light storage, ag buildings, no vehicle traffic beyond standard passenger vehicles
- 5 inches: standard shop, garage, light truck traffic
- 6 inches: heavy vehicles, forklifts, loaded farm equipment
- 8 inches: heavy industrial use, concrete mixing trucks driving on the slab
Reinforcement options: wire mesh gives basic crack control for light-use slabs. Rebar gives structural reinforcement and is required for any slab with vehicle traffic or heavy loads. Fiber reinforcement is sometimes added to wire mesh for additional crack resistance.
The thickened edge at the perimeter under your steel columns is not optional. This is where the anchor bolts are set, and it needs to be deep enough to provide the embedment depth your engineer specifies, typically 6–12 inches of bolt embedment minimum.
For a full breakdown by use case with reinforcement options and what each spec costs, see the concrete slab thickness guide.
Do You Need a Concrete Floor?
A concrete foundation and a concrete floor are not the same thing. You can have a concrete foundation (piers, perimeter wall, or a thickened slab edge) with a gravel, dirt, or rubber mat interior. Whether you need an interior floor depends on your use.
Agricultural buildings, equipment shelters, and some storage structures do fine without a concrete floor. You pour footings at the column bases, set the frame, and leave the interior as compacted gravel or dirt. It’s cheaper and it keeps the inside flexible, especially for livestock or equipment that punches through concrete over time.
For shops, garages, commercial buildings, and anything habitable, a concrete floor is the right call. It’s easier to maintain, handles wheeled traffic, and is required by code for most permitted commercial or residential structures.
For a breakdown of when to pour and when to skip it, see whether your building needs a floor.
Anchoring a Metal Building to the Foundation
Anchor bolts are the connection between your steel frame and the concrete below. They’re set in the foundation before the frame arrives, using a bolt template that comes with your building kit. The placement has to be precise: once the concrete cures, there’s no moving them.
Most pre-engineered metal building manufacturers supply an anchor bolt plan as part of the engineering package. It specifies bolt diameter, spacing, embedment depth, and projection above the slab. Your concrete contractor pours to those specs.
OSHA 29 CFR 1926.755 requires a minimum of four anchor bolts per column. Each bolt assembly, including the column-to-base plate weld and the foundation itself, must be designed to resist a minimum eccentric gravity load of 300 lbs located 18 inches from the outer face of the column. The bolts are typically all-threaded or partly-threaded rods with nuts at both the embedded and projecting ends.
The draft stated that the four-bolt minimum was a recent update from a previous two-bolt standard. OSHA 29 CFR 1926.755(b) has required four anchor bolts per column since the rule took effect in 2001. There was no recent change to this requirement. The sentence has been rewritten to accurately cite the standing regulation. Verify if you have a specific manufacturer recommendation you want to reference instead.
If you’re in a high-wind zone (coastal, hurricane country) or a high-seismic zone, your engineer may specify larger-diameter bolts, deeper embedment, or a plate washer system. Don’t substitute anchor bolt specs without the engineer’s approval; it affects the structural warranty and the permit.
For a deeper look at anchor options and what drives the spec differences, see anchoring a metal building.
Permits and Engineering: What to Expect
Most metal building foundations require a building permit. The threshold varies by jurisdiction, but anything over roughly 200 square feet typically triggers a permit requirement. Commercial structures and habitable buildings almost always require one regardless of size.
What the permit process typically involves:
- Foundation drawings stamped by a licensed structural or geotechnical engineer
- Building drawings from the steel manufacturer (most supply stamped engineered drawings as part of the kit)
- Inspection at the anchor bolt stage (before the pour), at the frame stage, and at final
Permit fees run $200–$600 for most residential-use metal buildings. Commercial structures can run higher. Rural counties often process permits in 2–4 weeks. Suburban jurisdictions and coastal areas with strict wind or flood zone codes can take 8–16 weeks.
The practical takeaway: start the permit application before you order the kit. Most steel manufacturers need 8–14 weeks lead time. If you wait for the permit before ordering, you’re adding those timelines sequentially. Run them in parallel.
Next Step: Talk to US Patriot Steel about Your Foundation Plan
Every metal building we sell comes with an engineered anchor bolt plan and foundation specification. That document is what your concrete contractor needs to pour correctly, and it’s what your building inspector will check at the pre-pour inspection.
Call (888) 415-1576 or use the quote form to talk through your build. Tell us your footprint, location, intended use, and soil conditions if you know them, and we’ll make sure the building quote and the foundation spec match from the start.
Frequently Asked Questions
Most metal buildings need a concrete slab-on-grade with a thickened perimeter footing where the anchor bolts are embedded. In cold climates with frost depths over 12 inches, a perimeter wall (stem wall) foundation that extends below the frost line is often required instead. Open-sided agricultural structures and temporary shelters may use piers or a compacted gravel pad, but any engineered metal building frame needs anchor bolts set in concrete.
? A standard concrete slab-on-grade runs $6–$12 per square foot installed, including materials and labor. On a 30×40 footprint (1,200 sq ft), expect $7,200–$14,400. On a 40×60 (2,400 sq ft), expect $14,400–$28,800. Adding a vapor barrier, rebar instead of wire mesh, or a stem wall system pushes the number higher. Site grading, excavation, and engineered drawings are additional costs (Source: HomeGuide, 2026; Angi, 2026).
For most US metal building projects on stable, non-expansive soil, a monolithic slab-on-grade is the best combination of cost, performance, and simplicity. It provides both the foundation and the finished floor in one pour. In cold climates, a perimeter wall system that extends below the frost line is a better fit and often required by code. On slopes or sites where a full slab is impractical, a pier system with or without a separate interior floor is the right answer.
A slab foundation is a continuous concrete surface that covers the entire building footprint and serves as both the structural foundation and the floor. A pier foundation places individual concrete columns at each structural column location, going down to stable soil or below frost depth, with no continuous floor between them. Slabs cost more but provide a finished floor. Piers are cheaper and work well on difficult terrain or for buildings that don’t need an interior floor.
Engineered metal building frames need their anchor bolts set in concrete, so some form of concrete is always required. That can be a full slab, individual pier footings at each column, or a perimeter footing with piers between. A gravel pad or dirt floor can work for the interior of some agricultural buildings, but the anchor bolt locations still need concrete footings even if the rest of the interior is unpaved.
A 4-inch slab works for light storage and ag buildings with no vehicle traffic. A 5-inch slab is the starting point for shops and garages. A 6-inch slab handles forklifts and heavy trucks. Buildings with very heavy industrial use, such as concrete mixer access or heavy manufacturing equipment, typically need 8 inches. The thickened edges at the perimeter under the steel columns are always deeper than the interior slab, typically 12–18 inches deep to accommodate anchor bolt embedment.
