Most commercial buildings need fire sprinklers when the fire area exceeds certain square footage, when the occupancy group carries higher life-safety risk, or when the building rises above a threshold number of stories. The exact trigger depends on the occupancy classification, the applicable edition of the International Building Code (IBC), and any local amendments adopted by the Authority Having Jurisdiction (AHJ). For the majority of new commercial construction in the US, a fully compliant NFPA 13 automatic sprinkler system is required before a certificate of occupancy is issued.
This article covers the code framework, thresholds by occupancy group, how the three NFPA standards differ, and what this means specifically for steel and metal commercial buildings.
Quick Answer
- Occupancy group with no size threshold (Group R residential, Group H high-hazard, Group I institutional): sprinklers required throughout regardless of square footage.
- Fire area exceeds the code threshold for your occupancy group: Group A-2 (restaurants, bars) triggers at 5,000 sq ft; Group A-1, A-3, A-4, and Group E trigger at 12,000 sq ft; Group M mercantile triggers at 24,000 sq ft combined area across all floors.
- Building height: buildings over 55 feet in height require sprinklers throughout under IBC Section 903.2.11.3.
- Four or more stories: structures of four or more stories above grade often require sprinklers under state or local amendments even where the base IBC threshold is not otherwise met.
- Special conditions: high-piled storage, certain basements, hazardous materials, or a fire area on a floor other than the level of exit discharge.
How Building Codes Decide: IBC, NFPA, and the Role of the AHJ
Two documents drive most commercial fire sprinkler decisions in the US.
The International Building Code (IBC), published by the International Code Council (ICC), is the model building code adopted in some form by all 50 states. Chapter 9 (Section 903) sets out when automatic sprinkler systems are required. The IBC does not specify how a system is designed; it says when one is needed and which NFPA standard governs the installation.
The NFPA 13 family of standards, published by the National Fire Protection Association, governs how sprinkler systems are designed and installed. NFPA 13 covers commercial buildings; NFPA 13R covers low-rise residential; NFPA 13D covers one- and two-family dwellings.
The Authority Having Jurisdiction (AHJ) is the local fire marshal, building department, or inspection authority that enforces codes in your area. The AHJ can interpret ambiguous code language, approve equivalencies, and enforce local amendments that differ from the model code. A threshold that says “12,000 sq ft” in the model IBC might be amended to “10,000 sq ft” in your county. The AHJ’s word is final on permit approval.
In practice, a fire protection engineer reads the IBC chapter and occupancy classification, calculates the fire area, checks the relevant 903.2.x subsection, and then confirms with the local AHJ before system design begins. This is not a process a building owner should navigate alone.
Thresholds by occupancy group
The IBC classifies every building by its primary use. That classification determines which sprinkler trigger applies. The table below reflects IBC Section 903.2 thresholds from the 2021 IBC, which is currently the most widely adopted edition; some jurisdictions are on 2018 or 2024 editions.
| Occupancy group | Description | Typical sprinkler trigger (IBC 903.2) |
| Group A-1 | Theaters, performing arts | Fire area > 12,000 sq ft; occupant load ≥ 300; or located above/below level of exit discharge |
| Group A-2 | Restaurants, bars, nightclubs | Fire area > 5,000 sq ft |
| Group A-3 | Arenas, bowling alleys, churches | Fire area > 12,000 sq ft; occupant load ≥ 300 |
| Group A-4 | Indoor sporting venues | Fire area > 12,000 sq ft; occupant load ≥ 300 |
| Group B | Offices, banks, clinics | No automatic fire-area threshold in base IBC; see height/story triggers and AHJ local amendments |
| Group E | Schools, day care (> 12 occupants) | Fire area > 12,000 sq ft; occupant load ≥ 300; or located on a floor other than level of exit discharge |
| Group F-1 | Moderate-hazard factory/industrial | No general threshold; upholstered furniture/mattress manufacturing > 2,500 sq ft triggers requirement |
| Group H | High-hazard (chemicals, explosives) | Required throughout, no size threshold |
| Group I | Hospitals, nursing homes, jails | Required throughout, no size threshold |
| Group M | Retail stores, markets | Combined fire area across all floors > 24,000 sq ft; OR display/sale of upholstered furniture/mattresses > 5,000 sq ft |
| Group R | Hotels, apartments, dormitories | Required throughout all buildings with any Group R fire area (no size threshold) |
| Group S-1 | Moderate-hazard storage (warehouses) | Upholstered furniture/mattress storage > 2,500 sq ft; high-piled storage triggers additional requirements |
| Group S-2 | Low-hazard storage, open parking garages | Open parking garage fire area > 48,000 sq ft |
Source: IBC 2021, Chapter 9, Section 903.2 (International Code Council).
A few practical points on this table. Group B (offices, business) does not carry a standalone fire-area threshold in the base IBC; however, Group B buildings over 55 feet in height require sprinklers under IBC 903.2.11.3, and many states have added lower thresholds through local amendments. Group R has no threshold at all; even a small hotel or apartment building needs a full sprinkler system. Group H and I are the same: size is not a factor.
NFPA 13 vs. NFPA 13R vs. NFPA 13D
When a building needs sprinklers, the next question is which NFPA standard governs the installation. The answer depends on building type and height.
NFPA 13 is the standard for commercial buildings, industrial facilities, high-rise residential buildings, and any occupancy where the IBC requires a “fully sprinklered” building. NFPA 13 requires sprinkler coverage throughout the building, including most concealed spaces and attics. It specifies hydraulic design densities based on hazard classification. Only an NFPA 13 system earns the IBC’s “fully sprinklered” designation, which unlocks code tradeoffs on allowable building area, height, and egress distances. For any commercial project, NFPA 13 is almost always what the IBC is pointing to.
NFPA 13R covers low-rise residential occupancies, generally Group R buildings four stories or fewer above grade. (The 2024 IBC expanded the 13R allowance to buildings up to 45 feet in height for Group R-2.) It is a life-safety standard, not a property-protection standard. NFPA 13R allows certain small bathrooms and some attic spaces to remain unsprinklered. It requires a 30-minute water supply. It does not satisfy the IBC’s “fully sprinklered” definition, so height and area tradeoffs that require full sprinkler protection do not apply to a 13R building.
NFPA 13D covers one- and two-family dwellings and manufactured homes. It requires only a 10-minute water supply and allows more unprotected concealed spaces than 13R. NFPA 13D has no application to commercial buildings.
The practical summary:
- Commercial building: NFPA 13.
- Low-rise apartment or hotel (4 stories or fewer / ≤ 45 ft per 2024 IBC): NFPA 13R is permitted.
- Single-family home: NFPA 13D (where residential sprinklers are required by local code).
Cost follows this hierarchy. NFPA 13 systems are the most expensive to install because they require greater coverage area, higher water supply demand, and often larger supply mains or booster pumps. NFPA 13R systems reduce material and supply costs for qualifying residential buildings. NFPA 13D is the least expensive but applies only to residential uses.
Other Triggers Beyond Occupancy and Fire Area
Occupancy group and fire area are the primary triggers, but four other conditions can require sprinklers even when a building would otherwise fall below the threshold.
Building height. Under IBC Section 903.2.11.3, any building over 55 feet in height requires an automatic sprinkler system throughout. This applies regardless of occupancy group or fire area. A 60-foot office building that sits below any Group B fire-area threshold still needs sprinklers.
Number of stories. Many state and local codes require sprinklers in any building of four or more stories. Some jurisdictions set this at three stories. Check local amendments before assuming the base IBC thresholds govern.
High-piled storage. Warehouses storing commodities in racks or piles over 12 feet in height are subject to separate requirements under IBC Chapter 32 and NFPA 13 high-piled storage provisions, often requiring in-rack sprinklers in addition to ceiling-level heads. This is one of the most commonly overlooked triggers for metal warehouse buildings.
Floors without exterior openings. IBC Section 903.2.11.1 requires sprinklers throughout all stories where a floor area exceeds 1,500 sq ft and the story does not meet the exterior wall opening criteria. Basements typically fall into this category.
Occupant load. For Group A occupancies, an occupant load of 300 or more triggers the requirement independently of fire area. A moderately sized assembly space packed with people can hit this threshold before it hits 12,000 sq ft.
Water Supply and System Basics
A fire sprinkler system is only as reliable as its water supply. The AHJ and fire protection engineer assess available water before approving a design.
The system needs to deliver a minimum flow rate and residual pressure at the most hydraulically demanding location in the building. For a typical NFPA 13 light-hazard office building, this might be 0.10 gpm per sq ft over the most remote 1,500 sq ft of design area. An ordinary-hazard (Group I) or extra-hazard (Group H or high-piled storage) building demands higher densities. If the municipal water main cannot supply sufficient pressure and volume, a fire pump and/or on-site storage tank is required, which adds cost and complexity.
The system components are: a water supply connection, a backflow preventer, a fire riser with control valve and flow alarm, a network of pipes (typically steel Schedule 10 or Schedule 40, or listed CPVC in some residential applications), and the sprinkler heads themselves. Heads are selected by temperature rating and response type based on the hazard classification of each area they protect.

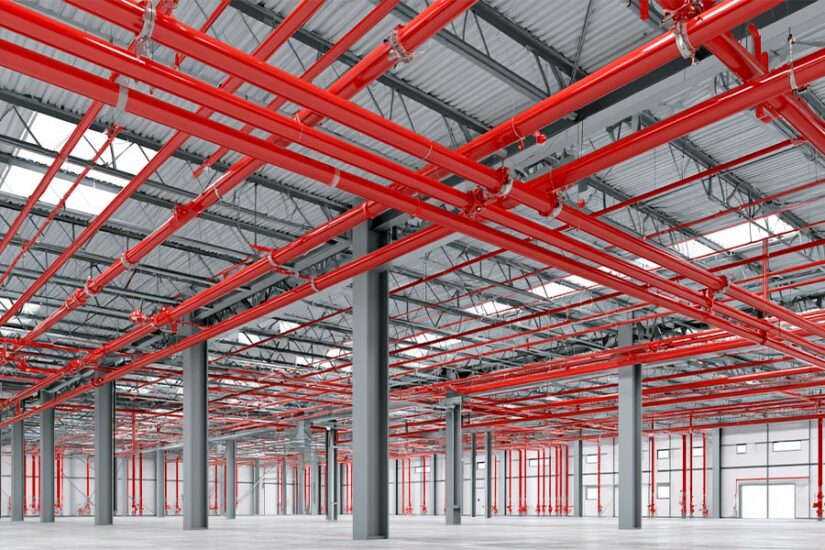

What this Means for a Metal or Steel Commercial Building
Steel and metal buildings have characteristics that directly affect fire sprinkler planning.
Open clear-span layouts in steel commercial buildings often result in large, undivided fire areas. A 10,000-square-foot steel warehouse has a 10,000-square-foot fire area if it has no interior fire walls. Adding a fire wall (a rated assembly that subdivides the building) can reduce the fire area below a code threshold, potentially eliminating the sprinkler requirement in some occupancy groups. A fire protection engineer can model this tradeoff.
High-piled storage is common in steel warehouses and distribution centers. As noted above, storage racked above 12 feet triggers requirements beyond standard ceiling-level coverage. Metal warehouse buildings with racking systems need this assessed at the design stage, not after the building is up and racking is in.
Roof height and construction affect sprinkler head selection and spacing. A steel building with an exposed metal deck roof has different thermal characteristics than a building with a drop ceiling. Heads must be selected for the unobstructed ceiling height and the heat exposure from the roof.
Pre-engineered steel buildings can accept fire protection piping in the design phase. Pipe hangers can be integrated with the secondary framing, and riser locations can be coordinated with wall panel openings before fabrication. Retrofitting sprinklers into an existing steel building is more expensive; planning for them from the start reduces cost.
For commercial metal buildings used as offices, retail, or mixed-use, see the commercial metal buildings page. For metal warehouse and storage buildings where high-piled storage thresholds are a particular concern, see metal warehouses.
A related factor: why metal construction is common in commercial occupancies. For background on structural considerations in steel commercial frames, see why metal studs are used in commercial buildings.
Cost: What Fire Sprinklers add to a Commercial Project
Fire sprinkler systems in new commercial construction typically run $2–$5 per square foot installed, including materials, labor, and the fire riser assembly (Source: GetSafeAndSound.com, 2025; CostOwl.com, 2025). A 10,000-square-foot office building would add $20,000–$50,000 to the construction budget. A 50,000-square-foot warehouse can run $100,000–$350,000, depending on hazard classification and whether in-rack systems are required.
Retrofit installations (adding sprinklers to an existing building) cost more: $4–$10 per square foot is a common range because the contractor must work around existing construction, cut into finished ceilings, and potentially upgrade the water supply. Historic buildings can run higher still.
Factors that push cost up:
- High-piled storage requiring in-rack heads
- Insufficient municipal water pressure requiring a fire pump or tank
- Complex building geometry with many small rooms
- Hazardous occupancy classifications demanding higher design densities
For commercial projects, budgeting $3–$5 per square foot as a planning figure for a standard NFPA 13 system in new construction is reasonable. Get a hydraulic analysis and system layout from a licensed fire protection engineer before finalizing the budget.
Overall commercial metal building costs, including site work, foundation, and finish, are covered in the metal building cost guide.
Next Step
If you’re planning a commercial steel building and want to know how fire sprinkler requirements affect the design, footprint, or budget, the right call is to a fire protection engineer before the structural plans are finalized. The cost to plan for sprinklers at the design stage is almost always lower than retrofitting them after construction.
US Patriot Steel supplies pre-engineered commercial steel buildings to 40+ states. Our team can help you understand how building dimensions, occupancy classification, and use affect what systems your project will require.
Call (888) 415-1576 or use the quote request form to talk through your commercial project. We’ll help you match the right structure to your intended use, including accounting for fire protection system requirements at the design stage.
Frequently Asked Questions
Most new commercial buildings in the US are required to have fire sprinklers, but the requirement depends on occupancy group, fire area, and building height. High-risk occupancies (Group H, Group I, Group R) require sprinklers regardless of size. Assembly buildings (Group A-2: restaurants) trigger at 5,000 sq ft fire area; schools and theaters at 12,000 sq ft. Buildings over 55 feet in height require sprinklers under IBC Section 903.2.11.3 regardless of occupancy. Local amendments often add requirements beyond the model IBC.
The threshold varies by occupancy. Group A-2 (restaurants, bars) triggers at a 5,000 sq ft fire area. Group A-1, A-3, A-4, and Group E (schools) trigger at 12,000 sq ft. Group M (retail) triggers when the combined fire area across all floors exceeds 24,000 sq ft. Group R, H, and I buildings have no size threshold; sprinklers are required throughout regardless of square footage. Group B (offices) has no standalone fire-area trigger in the base IBC but is subject to height and local-amendment triggers.
NFPA 13 governs commercial buildings and is the standard required by the IBC for any occupancy where a “fully sprinklered” building is required. NFPA 13R covers low-rise residential occupancies (generally four stories or fewer, or up to 45 feet under the 2024 IBC) and allows some unprotected areas; it is a life-safety standard, not a property-protection standard. NFPA 13D applies only to one- and two-family dwellings. Commercial projects use NFPA 13.
Most commercial warehouse buildings require fire sprinklers under NFPA 13. The basic trigger for Group S-1 (moderate-hazard storage) in the IBC is upholstered furniture or mattress storage over 2,500 sq ft. But the more significant trigger for typical warehouses is high-piled storage: commodities stored in racks or solid piles over 12 feet in height require sprinkler protection under IBC Chapter 32 and NFPA 13 high-piled storage provisions, which may also require in-rack heads in addition to ceiling-level coverage.
New commercial construction typically runs $2–$5 per square foot installed for a standard NFPA 13 light-to-ordinary-hazard system (Source: GetSafeAndSound.com, 2025). A 10,000 sq ft building adds $20,000–$50,000. Retrofit installations in existing buildings run $4–$10 per square foot. High-piled warehouse storage, insufficient water supply requiring a fire pump, or extra-hazard occupancies push cost toward the higher end of the range.
The Authority Having Jurisdiction (AHJ) makes the final determination. This is typically the local fire marshal, building department, or fire prevention bureau. They enforce the IBC edition and local amendments adopted in your jurisdiction. A licensed fire protection engineer reads the code and designs the system; the AHJ approves the plans and inspects the installation. If there is a disagreement about whether a code threshold applies to your building, the AHJ’s interpretation governs.
- Commercial metal buildings: structural options, occupancy configurations, and what pre-engineered steel can do for commercial projects
- Metal warehouses: storage-specific considerations, clear spans, and high-piled storage planning
- Why metal studs are used in commercial buildings: how steel framing affects commercial construction and fire resistance
- How much do metal buildings cost?: full cost breakdown across building types and sizes
References
- International Code Council. 2021 International Building Code, Chapter 9: Fire Protection and Life Safety Systems, Section 903. codes.iccsafe.org
- International Code Council. 2024 International Building Code, Chapter 9. codes.iccsafe.org
- National Fire Sprinkler Association. What does the International Building Code say about NFPA 13R? nfsa.org
- National Fire Sprinkler Association. Changes to the 2024 IBC and IFC. nfsa.org
- GetSafeAndSound.com. Commercial Fire Sprinkler System Costs: Price Guide (2025). getsafeandsound.com
- DataDrivenAEC. IBC Sprinkler Requirements: When a System Is Required (2024). datadrivenaec.com
This article is for general information only. Fire sprinkler requirements vary by jurisdiction, building edition, and project specifics. Always consult a licensed fire protection engineer and your local AHJ before making code decisions.
